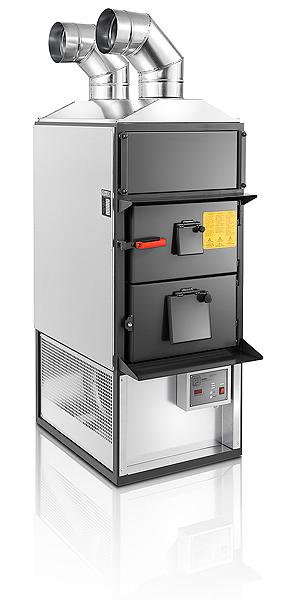

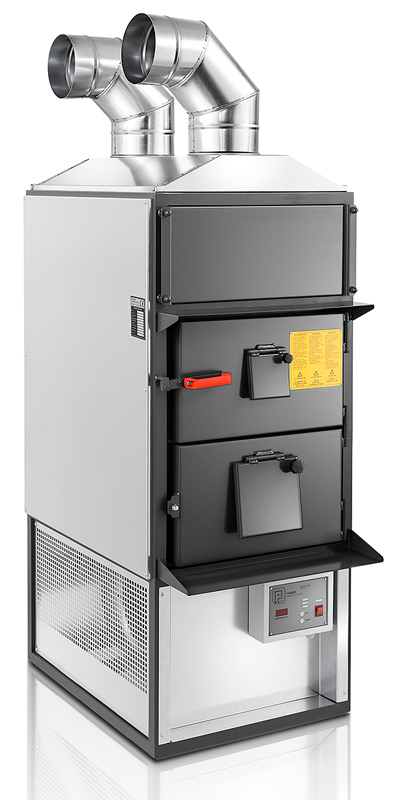

Model: F55 |
|
Construction Features
Horizontal oven made of thermal chrome plated stainless steel, reinforced with ribs.
Exchangers 2 or 3 smoke revs.
Inner side made of bright sheet metal for casing and insulation.
Outer side made of zinc plated sheet metal.
Frame made of painted profile.
Feeding doors with refractory and extractable grates.
Panels with refractory for pipes cleaning.
Double suction centrifugal fans for hot air delivery running at low regime of turns and arranged on special elastic suspensions driven by one or more electric motors.
Smoke extraction fan (except mod. F 28-F 55 sv - F 85 sv).
Electric command and control panel - adjusting thermostat.
APPROXIMATE SURFACE TO HEAT UP: m² 200 / 250 - m³ 1.000
Maintenance:
Ordinary maintenance means the removal of the deposited ashes by opening the door.
Once or twice a year, perform a general cleaning of pipes.
|
|
|
|
Technical Characteristics
01 HOT AIR DELIVERY OPENINGS
02 MANUAL LOADING DOOR
03 ASH DISPOSAL CONTROL DOOR
04 REJECT GRATE
05 AIR SUCTION GRATE
06 ELECTRIC PANEL
07 TUBE CLEANING INSPECTION DOOR
08 AIR SUCTION UNIT*
(*for Models provided with Air Suction Unit)
|
 |
|
|
Technical Details |
 |
|
|
F 28 |
F 55 |
F 85 |
F 120 |
F 240 |
F 350 |
| A Width |
550 mm |
700 mm |
800 mm |
930 mm |
1.100 mm |
1.220 mm |
| B Height |
1.400 mm |
1.550 mm |
1.760 mm |
1.970 mm |
2.250 mm |
2.700 mm |
| C Lenght |
920 mm |
1.150 mm |
1.280 mm |
1.700 mm |
1.900 mm |
2.700 mm |
| C Flue diameter |
160 mm |
180 mm |
180 mm |
200 mm |
200 mm |
250 mm |
| L Hot air delivery pipes |
2x180 ø mm |
2x200 ø mm |
2x250 ø mm |
3x250 ø mm |
3x300 ø mm |
4x350 ø mm |
| M Plenum chamber |
160 mm |
200 mm |
220 mm |
230 mm |
250 mm |
300 mm |
| E Flue lenght |
500 mm |
660 mm |
750 mm |
950 mm |
1.200 mm |
1.900 mm |
| F Oven width |
400 mm |
480 mm |
560 mm |
600 mm |
740 mm |
900 mm |
| G Oven height |
590 mm |
600 mm |
700 mm |
860 mm |
1.040 mm |
900 mm |
Fuels: Wood - Chips - Peat |
| Flue Capacity Kcal/h |
29.900 kcal/h |
69.000 kcal/h |
99.500 kcal/h |
150.000 kcal/h |
300.000 kcal/h |
437.000 kcal/h |
| Conventional yeld capacity |
25.000 kcal/h |
55.000 kcal/h |
80.000 kcal/h |
120.000 kcal/h |
240.000 kcal/h |
300.000 kcal/h |
| Air flow (at 15°) |
2.200 mc/h |
3.500 mc/h |
6.300 mc/h |
8.900 mc/h |
17.800 mc/h |
26.000 mc/h |
Flue consumption
P.C. 3.500 Kcal/Kg. |
13 Kg/h |
20 Kg/h |
30 Kg/h |
43 Kg/h |
85 Kg/h |
120 Kg/h |
| Fan electric power |
0,35 HP |
0,35 HP |
1,5 HP |
3 HP |
4 HP |
6 HP |
| Fan electric power of flue gas exhaust |
- |
0,35 HP |
0,35 HP |
0,75 HP |
0,75 HP |
1,5 HP |
| Motor voltage |
220 V monof.
220 V oneph. |
220 V monof.
220 V oneph. |
380 V trif.
380 V threeph. |
380 V trif.
380 V threeph. |
380 V trif.
380 V threeph. |
380 V trif.
380 V threeph. |
| N.B. All the technical data are subjecte to changes and improvements and we reserve the right to change them without notice. |
|
|
The innovative Hot Air Generators are suitable for the combustion of wood and all solid fuels allowed by law.
Environment-protecting and energy-saving. |
 |
|
|
|
|
